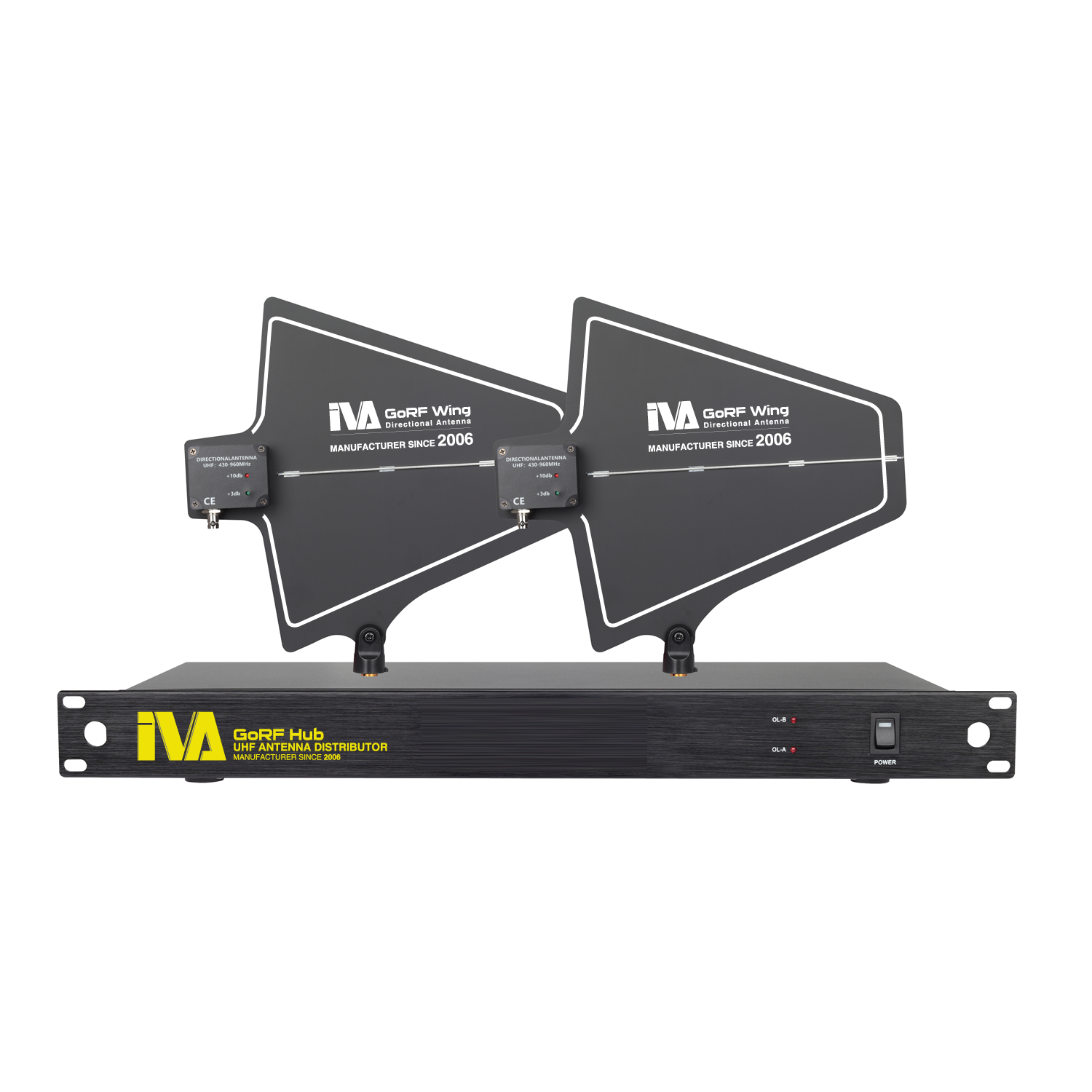

The IVA GoRF Kit is the ultimate RF signal management bundle designed to ensure flawless, dropout-free UHF wireless microphone performance. Combining a pair of GoRF Wing directional antennas and a powerful GoRF Hub antenna distributor, this all-in-one solution eliminates antenna clutter and actively boosts weak RF signals for absolute transmission reliability. It is an essential system when deploying three or more wireless setups simultaneously. Beyond signal management, the GoRF Hub powers up to four receivers directly to eliminate messy power bricks and cables. Highly scalable, the system allows multiple hubs to be easily cascaded via dedicated ports to accommodate large-scale deployments.
Eliminate Clutter, Maximize Signal Integrity
Multiple antennas scattered across various receivers create a chaotic "antenna farm" that doesn't just look unprofessional, it can cause 50% or more in signal degradation. The GoRF Kit completely transforms the setup. By streamlining multiple antennas into a single, high performance directional pair, it eliminates destructive intermodulation interference. Plus, it tidies up the workspace by centralizing power distribution, permanently removing tangled power cables and bulky power bricks from the setup.
Precision Capture, Powerful Amplification
Engineered to lock onto weak incoming RF signals, the GoRF Wing utilizes a highly directional cardioid design for natural, passive gain. Paired with a built-in amplifier offering selectable +3dB or +10dB boosts, it delivers bulletproof RF transmission. These adjustable gain options give you precise control, ensuring you can optimize signal strength without the risk of under-amplification or signal overload. This seamless capture and boost technology ensures your wireless microphones deliver flawless, dropout free audio, giving you absolute confidence during the most critical live events.
Scale Without Limits
Deploying more than 4 receivers usually means managing more than 8 antennas, creating a complex headache for signal distribution. The GoRF Hub features dedicated cascade ports that deliver massive savings in both equipment costs and engineering time. First, these dedicated cascade ports free up your standard output ports, allowing you to deploy maximum receivers without sacrificing valuable channels. Second, during the system design phase, this architecture simplifies the entire workflow by eliminating the need to allocate 2 output ports strictly for cascading purposes.
The Ultimate Companion for True Diversity
The GoRF Kit is engineered to bring out the absolute best in true diversity wireless microphone systems. When you set up the dual GoRF Wing, both antennas receive identical transmissions at varying strengths due to distance and environmental obstacles. By pairing with true diversity technology, the receiver intelligently analyzes and instantly selects the strongest signal, guaranteeing seamless audio regardless of how the transmitter moves around the venue. This perfect synergy makes the IVA GoRF Kit the ideal partner for the IVA PRO-UD2 Advance Compact.
Amplified Stability for Non Diversity Systems
The GoRF Kit seamlessly integrates with non diversity models such as the GoWireless and GoWireless Pro. While non diversity architectures inherently lack the antenna switching capabilities of true diversity systems and remain susceptible to occasional blind spots, adding the GoRF Kit dramatically improves overall performance. By capturing incoming RF signals with the high gain of GoRF Wing antennas and driving them through the GoRF Hub distributor, the system heavily compensates for potential signal degradation. This extra signal boost punches through noises, interference and extends operational range, ensuring rock solid, highly reliable transmission even for more basic wireless configurations.
Tech Specs
GoRF Hub
- Frequency Range: 430 ~ 970 Mhz
- Gain of Output: + 5 dB
- Input Impedance: 50 Ω
- Output Impedance: 50 Ω
- Power Supply of Antenna Inputs: +12 Vdc / 200 mA
- Power Supplies of Receiver: 12 ~ 15 Vdc 200 mA
- Input Ports: 2
- Output Ports: 8
- Cascade Ports: 2
- Dimensions (WxDxH):
- Weight:
- Packaging Dimensions (WxDxH):
- Packaging Weight:
GoRF Wing
- Antenna Type: Logarithmic Periodic Direction (LPDA)
- Frequency Range: 430 ~ 970 Mhz
- Antenna Direction Pattern: Cardiord
- Antenna Directionality: Horizontal 90 °, Vertical 60 °
- Antenna Gain: +6 dB
- Amplifier Gain: +10 dB or + 3 dB (with Gain LED indicator)
- Connector Port: BNC female
- Dimensions (mm): 342 × 301 × 16 mm
- Weight:
