FEATURES

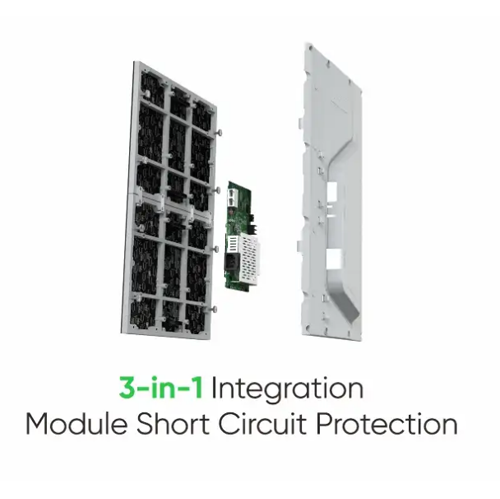

• Exclusive system card：
  Power supply, hub, receiving card 3-in-1, exclusive design of LAMPRO.
• Ultra-light and thin
  The maximum thickness is 52.6mm
  The thickness of the screen is 28.2mm
  The weight of the cabinet is only 2.2kg

• High Brightness ,High Contrast，High Refresh
  Standard brightness ≥ 500nit, refresh rate up to 5000:1 ,
  Standard 3840Hz.

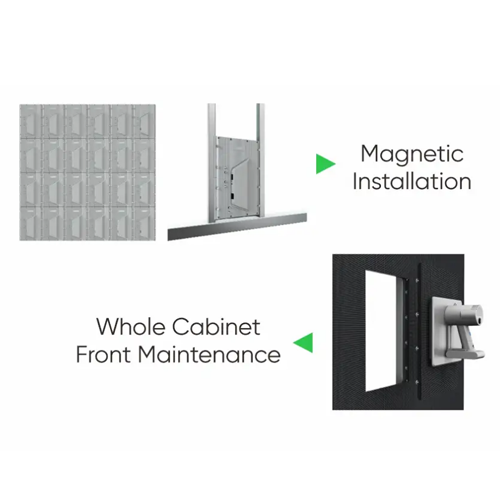

• Efficient Installation,Front Maintenance
  The cabinet can directly magnetically attract the steel
  structure,Quickly complete the construction of the large screen, Greatly improve

SPECIFICATIONS

Module
Pixel Pitch: 2mm
LED Type: SMD1515
Module Resolution(WxH): 160x80= 12800 Pixels
Pixel density(pixels/ sq. m.): 250000 dot/m²
Module Size (WxH): W320mmxH160mm

Cabinet

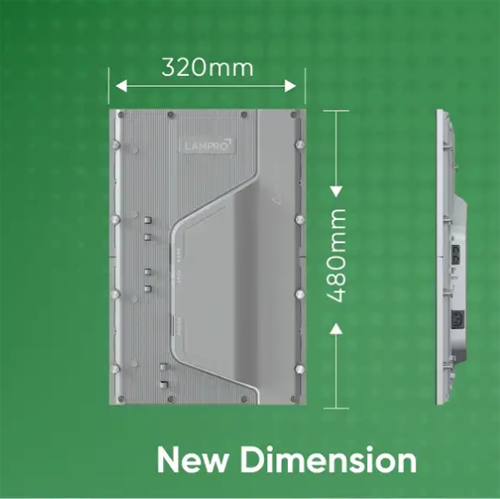

Cabinet Size (WxHxD): 320mmx480mmx52. 6mm(With Module, Kit, Back Cover)
Cabinet Weight (kg/ panel): 2. 2± 0. 1kg
Maintenance: Full front maintenance
Ingress Protection: IP30
Planeness: ≤ 0.5mm
Cabinet Material: Plastic

Optical
Single- dot Brightness Calibration: Support
Brightness: 500 cd/m²
Color Temperature: 2000K～9300K Adjustable
Beam Angle(Hor/Ver°) 140° / 140°
Brightness/ Color Uniformity ≥ 98%
Contrast Ratio: 5000: 1

Electronic
Input Power < Max> 488 W/m²
Input Power < Typical> 163 W/m²
Power Supply Input Voltage: AC90~132V/ AC186～264V, Frequency 47- 63（Hz）

Performance
Frame Changing Frequency: 60Hz
Refresh Rate: 3840Hz
Processing Depth: 12~14Bit
Video Support: 2K、4K

Environment
Life Span(hrs) : 100000hrs
Working Temp/ Humidity(°C / RH) : - 20°C~45°C / 10% 50%RH(No Condensation)
Storage Temp/ Humidity(°C / RH) - 20°C 50°C / 10% 60%RH(No Condensation)
