Description

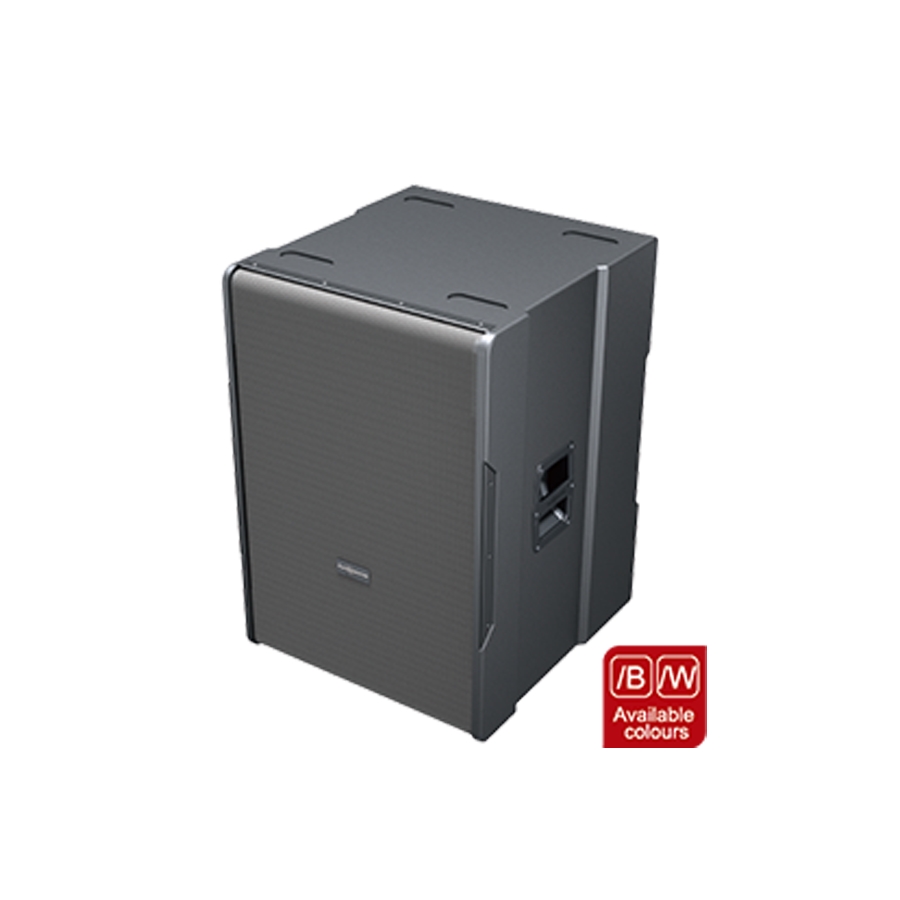

Artist T115S-DSP is single 15” active DSP- controlled subwoofer with front loaded cabinet design and customized SMPS class D amplifier with built in DSP. With the powerful and dynamic performance, Artist T115S-DSP is a good match for Artist T45-DSP. 3 presets are available for Artist T115S-DSP. Normal - to match with Artist T45-DSP. Cardioid F - cardioid usage, for front coverage. Cardioid B - cardioid usage, for back coverage. Cardioid F and Cardioid B need to be combined together for cardioid usage.
Tech Specs
- Type: Active DSP-controlled Compact Subwoofer
- Frequency Response(-6dB anechoic chamber): 35 Hz - 250 Hz
- Maximum Calculated SPL/1M(Continuous/Peak): 130dB/136dB
- LF Driver: Customized 15" driver x 1
- DSP Processor: 96KHz signal sampling frequency, 56bit precision controlled by DSP
- Presets: Normal, Cardioid Front & Cardioid Back
- Class D amplifier Power: 1400W
- Frequency Response: 20Hz-20KHz(±0.5dB)
- Intermodulation Distortion: ＜0.05%
- Total Harmonic Distortion: ＜0.05%
- Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
- Cooling System: Fans
- Signal Input: 1 × Female XLR
- Signal Output: 1 × Male XLR
- Power Input: Powercon connector
- Working Voltage: 110V~130V or 220V~240V 50/60Hz
- Cabinet Material: CNC made of excellent wood
- Cabinet Color: Black is standard and default color. Consult with Audiocenter sales team for other customized colors
- Dimension(W×H×D): 438 x 600 x 570 mm
- Net Weight: 43.0 kg
